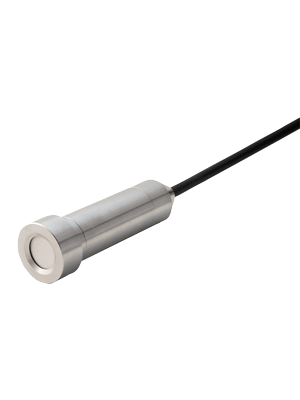

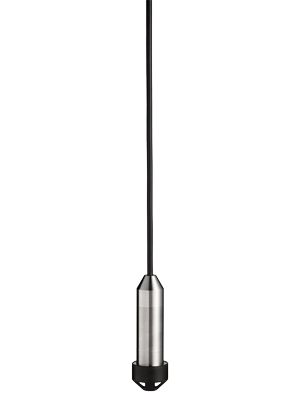

Submersible Level-Transmitter HydroCer with ceramic measuring cell

The Hydrocer is a level transmitter with cable or tube extension. Application for level measurement of water, wastewater and sludge.



Features

  • Strong ceramic measuring cell
  • Temperature compensation
  • Perfect long term stability



Technical details

 Measuring range min. max.  0,1…2 bar, fixed range
 Process  temperature  -10 °C…+70 °C
 Accuracy  0,2 % of adjusted span
 Process connections  Cable hanger, mounting bracket, threaded and flanged connections
 Output  4-20 mA 2-wire
 Power supply  12 - 36 Vdc
 Protection  IP68
 Diaphragm material  Capacitive ceramic measuring cell
 Sensor housing  AISI 316L
 Sensor sealing  Viton O-ring
 Cable material  Polyethylene, option Hytrel or PTFE



Applications

Level measurement of drinking water, surface water, wastewater and sludge. Often used by water boards and water works. Various industrial applications like level measurement in storage tanks. Level measurement of ballast water, drinking water and oil on ships.



Accessories

  • Cable hanger
  • Junction boxes
