HydroCer-I

Previous Next

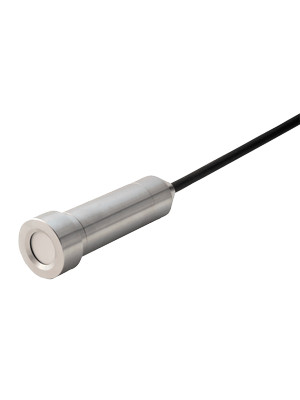

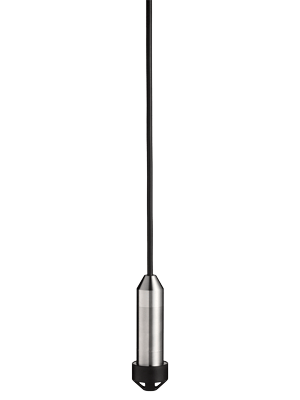

Intelligent Level Transmitter HydroCer-I with ceramic measuring cell

The Hydrobar-I is a microprocessor based adjustable level transmitter with cable extension. Application for level measurement of water, wastewater and sludge. This transmitter is remotely rangeable using the HART protocol.



Features

  • Adjustable with HART using PC or HHT
  • Strong ceramic measuring cell
  • Temperature compensation
  • Perfect long term stability



Technical details

 Measuring range min. max.  0,1…2 bar
 Process temperature  -10 °C…+70 °C
 Accuracy  0,1 % of adjusted span
 Process connections  Cable hanger, mounting bracket, threaded and flanged connections
 Output  4-20 mA 2-wire, option HART protocol
 Adjustment  With PC or Hand Held Terminal using HART protocol
 Power supply  12 - 36 Vdc
 Protection  IP68
 Diaphragm material  Capacitive ceramic measuring cell
 Sensor body  AISI 316L
 Sensor sealing  Viton O-ring
 Cable material  Polyethylene, option Hytrel or PTFE



Applications

Level measurement of drinking water, surface water, wastewater and sludge. Often used by water boards and water works. Various industrial applications like level measurement in storage tanks. Level measurement of ballast water, drinking water and oil on ships.



Accessories

  • Cable hanger
  • Junction boxes
