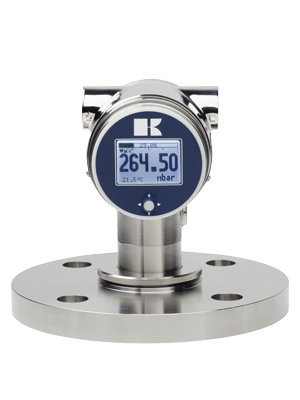

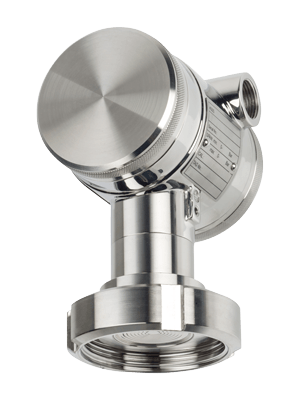

Intelligent Pressure Transmitter 4000-SAN with metallic diaphragm



The all stainless series 4000-SAN pressure transmitter has a flush diaphragm. Various hygienic connections, flanges or threaded connections. Application in the food industry, pharmaceutical industry and chemical industry. This microprocessor based transmitter can easily be programmed using the unique programming button and display.



Features

  • All stainless steel housing
  • Adjustable with programming button, without test pressure
  • Graphic display with backlight
  • Local indicator (option)
  • All current process connections



Technical details

 Measuring range min. max.  0,03…100 bar
 Process temperature  -20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C
 Accuracy  0,075 % of adjusted span
 Process connections  Hygienic connections, flanges and threaded connections, all with flush diaphragm
 Turn down  20:1
 Output  4-20 mA 2-wire with option HART protocol, Profibus PA
 Adjustment  With programming button and display, without test pressure or with HART
 Display  Multilingual, with bargraph, backlight and process temperature reading
 Power supply  12 - 36 Vdc (Ex: 12 - 30 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Diaphragm material  AISI 316L, option Hastelloy C, Tantalum or Gold plated
 Wetted parts  AISI 316L
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety: ATEX Ex-ia and IECEx Ex-ia (Optional T5 and T6)



Applications

Absolute and relative pressure measurement of liquids, pastes and slurries where a flush diaphragm is needed. Application mainly in the food industry, pharmaceutical industry and chemical industry. The transmitter is suitable for cleaning in place, both CIP and SIP.



Accessories

  • Welding nipples for several connections
