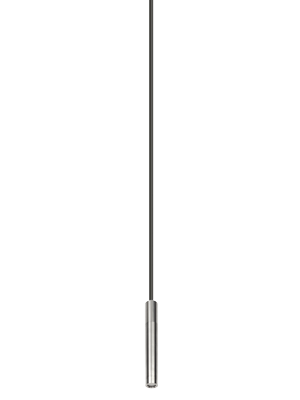

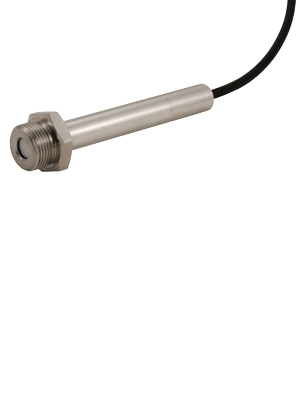

Submersible Level Transmitter AquaCer with ceramic measuring cell

The AquaCer is a level transmitter with cable or tube extension. Application for level measurement of water, wastewater and sludge.



Features

  • Diameter 22mm
  • Strong ceramic measuring cell
  • Temperature compensation
  • Perfect long term stability



Technical details

 Measuring range min. max.  0,1…5 bar, fixed range
 Process temperature  -10 °C…+70 °C
 Accuracy  0,2 % of adjusted span
 Process connections  Cable hanger,  threaded and flanged connections
 Output  4-20 mA 2-wire
 Power supply  12 - 36 Vdc
 Protection  IP68
 Diaphragm material  Capacitive ceramic measuring cell
 Sensor body  AISI 316L
 Sensor sealing  Viton O-ring
 Cable material  Polyurethane (PUR) optional PE or Hytrel



Applications

Level measurement of drinking water, surface water, wastewater and sludge. Often used by water boards and water works. Measurement in water wells, resrvoirs, storage tanks and underground tanks.



Accessories

  • Cable hanger
  • Junction boxes
