CER-8000

Previous Next

Pressure Transmitter CER-8000 with ceramic measuring cell

The CER-8000 is an all stainless pressure transmitter with ceramic measuring cell. Suitable for vacuum and pressure measurement on liquids and gasses. Zero and span can be adjusted internally in wide ranges.



Features

  • All stainless steel housing
  • Zero and span adjustable
  • High overrange capacity

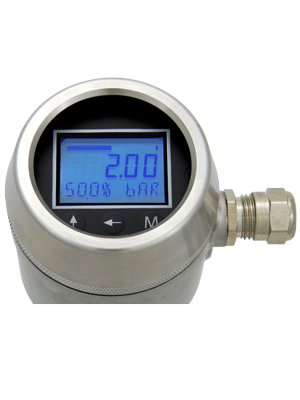

  • Local indicator (option)
  • ATEX and IECEx: Ex ia IIC T4 Ga



Technical details

 Measuring ranges min. max.  2.5…350 bar
 Process temperature  -20 °C…+80 °C
 Accuracy  0,2% of adjusted span
 Process connections  Threaded ½” BSP or NPT male
 Turn down  4:1
 Output  4-20 mA, 2-wire
 Adjustment  Zero and span adjustable internally
 Power supply  12 - 36 Vdc (Ex: 13 - 26,5 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -30 °C...+70 °C
 Diaphragm material  Ceramic sensor
 Sealing  Viton O-Ring (standard) other materials on request
 Wetted parts  AISI 316L
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety : ATEX Ex-ia, IECEx Ex-ia, EAC Ex-ia
 Marine approvals : Lloyd's, DNV, BV, CCS, ABS, KR
 Functional safety : SIL2



Applications

Absolute and relative pressure measurement of gas, steam, vapour and clean liquids



Accessories

  • 2-way manifold, syphon tube
