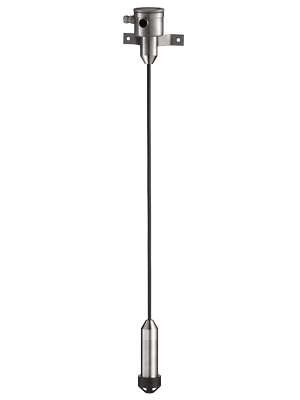

Submersible Level Transmitter Hydrobar with metallic diaphragm



The Hydrobar is a level transmitter with cable or tube extension. Application for level measurement of water, wastewater and sludge.



Features

  • Strong flush diaphragm
  • Perfect long term stability
  • Fixed or adjustable range
  • Active temperature compensation



Technical details

 Measuring range min. max.   0,1…15 bar, adjustable or fixed range
 Process temperature  -10 °C…+70 °C Sensor body and cable
 Accuracy  0,2 % of adjusted span
 Process connections  Cable hanger, mounting bracket, threaded and flanged connections
 Turn down  4:1
 Output  4-20 mA, 2-wire
 Adjustment  Zero and span adjustable internally only for adjustable version
 Power supply  12 - 36 Vdc (Ex: 13 - 26,5 Vdc and 17 - 26,5 Vdc for fixed range)
 Protection  IP68 (Submersible parts)
 IP66 (Electronics housing, adjustable version)
 Ambient temperature  -30 °C..+70 °C, Electronics housing adjustable version
 Diaphragm material  AISI 316L, option Hastelloy C or Gold plated
 Sensor body  AISI 316L
 Cable material  Polyethylene, option Hytrel or PTFE
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety: ATEX Ex-ia, IECEx Ex-ia, EAC Ex-ia
 Marine approvals: Lloyd's, DNV, CCS, BV, ABS, KR
 Functional safety: SIL2
 Sanitary standard: 3-A



Applications

Level measurement of drinking water, surface water, wastewater and sludge. Often used by water boards and water works. Various industrial applications like level measurement in storage tanks. Level measurement of ballast water, drinking water and oil on ships.



Accessories

  • Cable hanger
  • Junction boxes
