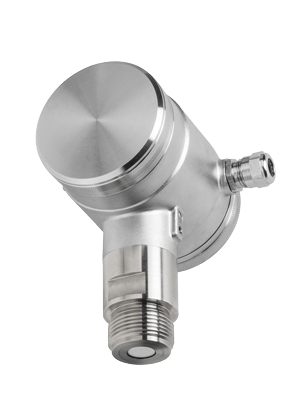

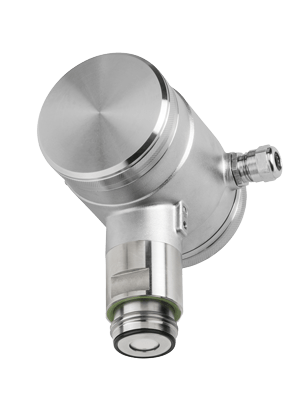

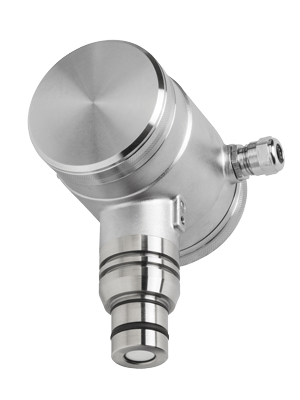

Intelligent level transmitter 3000 with flush mounted ceramic sensor

The all stainless series 3000 pressure transmitter has a flush mounted ceramic sensor. Suitable for hydrostatic level measurement on liquids when a ceramic sensor is preferred. This microprocessor based transmitter can easily be programmed using the three push buttons and display.



Features

  • All stainless steel housing
  • Easy adjustable using 3 push buttons, without test pressure
  • Strong flush mounted capacitive ceramic sensor
  • Active temperature compensation
  • Tank linearisation



Technical details

 Measuring range min. max.  0.1…50 bar
 Process temperature  -20 °C… +100 °C
 Accuracy  0,2 % of adjusted span, option 0.1 %
 Process connections  1” BSP and pulp- and paper connections
 Turn down  10:1
 Output  4 - 20 mA 2-wire, option HART protocol
 Adjustment  With 3 push buttons and display, without test pressure or with HART
 Power supply  12 - 36 Vdc
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Sensor material  Ceramic (AI203) 99,9 %
 Other wetted parts  AISI 316L, option Hastelloy C
 Electronics housing  AISI 304, option AISI 316



Applications

Non hygienic level measurement of liquids where a flush mounted sensor is needed. Examples are water, wastewater and oil. Because of the flush diaphragm very suitable for liquids which can cause clogging like pulp, paper and starch. For the pulp and paper industry specific process connections are available.



Accessories

  • Welding nipples for several connections
