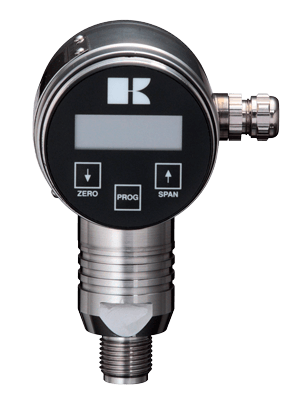

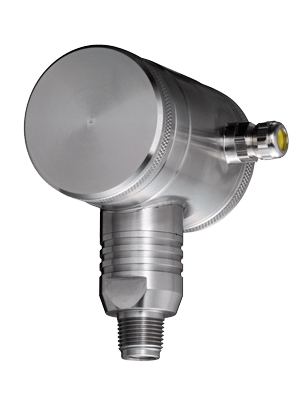

Intelligent Pressure Transmitter CER-2000 with ceramic measuring cell

The CER-2000 is an all stainless pressure transmitter with ceramic measuring cell. Suitable for vacuum and pressure measurement on liquids and gasses. This microprocessor based transmitter can easily be programmed using the three push buttons and display.



Features

  • All stainless steel housing
  • Easy adjustable using 3 push buttons, without test pressure
  • Full vacuum resistant
  • Active temperature compensation
  • ATEX and IECEx: Ex ia IIC T4 Ga (option)



Technical details

 Measuring range min. max.  10…350 bar
 Process temperature  -20 °C…+90 °C
 Accuracy  0,1 % of adjusted span
 Process connections  Threaded ½” BSP or NPT male
 Turn down  10:1
 Output  4-20 mA 2-wire, option HART protocol
 Adjustment  With 3 push buttons and display, without test pressure or with HART
 Power supply  12 - 36 Vdc (Ex: 12 - 26,5 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Diaphragm material  Ceramic sensor
 Sealing  Viton O-ring (standard) other materials on request
 Wetted parts  AISI 316
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety : ATEX and IECEx Ex-nA, Ex-ia, Ex-ib and Ex-ec, EAC Ex-ia
 Marine approvals : Lloyds, DNV, BV, CCS, ABS,
 Functional safety : SIL2



Applications

Absolute and relative pressure measurement of gas, steam, vapour and clean liquids.



Accessories

  • 2-way manifold, syphon tube
