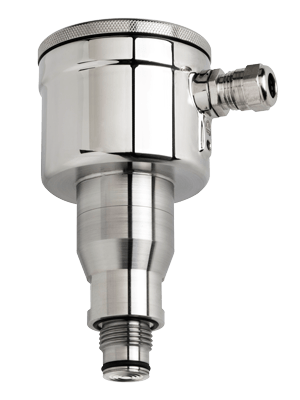

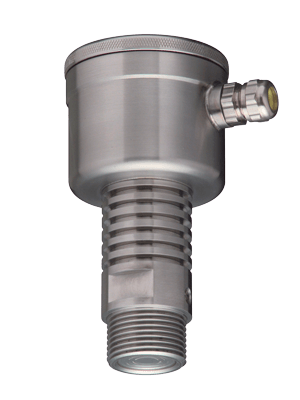

Pressure Transmitter 8000 with metallic diaphragm

The all stainless series 8000 pressure transmitter has a flush diaphragm. Suitable for vacuum and pressure measurement on liquids and gasses. Zero and span can be adjusted internally.



Features

  • All stainless steel housing
  • Active temperature compensation
  • Strong flush diaphragm
  • Zero and span adjustable
  • ATEX and IECEx: Ex ia IIC T4 Ga (option)



Technical details

 Measuring range min. max.  0,1…100 bar
 Process temperature  -20 °C…+80 °C
 Accuracy  0,2 % of adjusted span
 Process connections  1” BSP and pulp and paper connections with flush diaphragm, all current threaded connections
 Turn down  4:1
 Output  4-20 mA, 2-wire
 Adjustment  Zero and span adjustable internally
 Power supply  12 - 36 Vdc (Ex: 13 - 26,5 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -30 °C...+70 °C
 Diaphragm material  AISI 316L, option Hastelloy C or Gold plated
 Wetted parts  AISI 316L
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety: ATEX Ex-ia, IECEx Ex-ia, EAC Ex-ia
 Marine approvals: Lloyd's, DNV, BV, CCS, ABS, KR
 Functional safety: SIL2



Applications

Absolute and relative pressure measurement of gas and liquids. Because of the flush diaphragm very suitable for liquids which can cause clogging like pulp, paper and starch. For the pulp and paper industry specific process connections are available.



Accessories

  • Welding nipples for several connections
