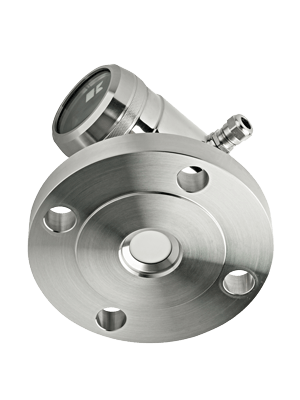

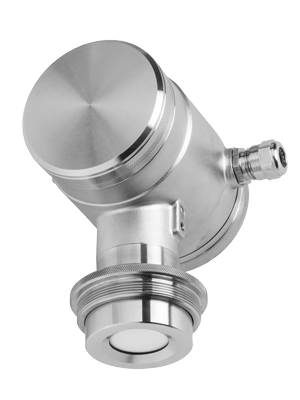

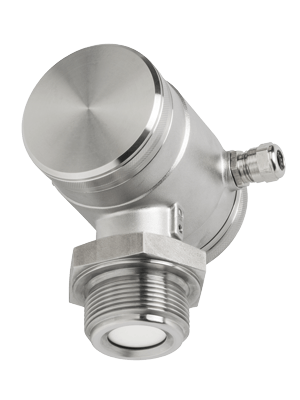

The all stainless series 3000-SAN level transmitter has a flush mounted ceramic sensor. Various hygienic connections, flanges or threaded connections. Application in the food industry, pharmaceutical industry and chemical industry when a ceramic sensor is preferred. This microprocessor based transmitter can easily be programmed using the three push buttons and display.
Features
- All stainless steel housing
- Easy adjustable using 3 push buttons, without test pressure
- Strong flush mounted capacitive ceramic sensor
- Active temperature compensation
- Many hygienic process connections
- Tank Linearisation
Technical details
| Measuring range min. max. | 0.1…50 bar |
| Process temperature | -20 °C…+100 °C (140 °C /30 min) |
| Accuracy | 0.2 % of adjusted span, option 0.1 % |
| Process connections | Hygienic connections, flanges and threaded connections |
| Turn down | 10:1 |
| Output | 4-20 mA 2-wire, option HART protocol |
| Adjustment | With 3 push buttons and display, without test pressure or with HART |
| Power supply | 12 - 36 Vdc |
| Protection | IP66 (option: IP68) |
| Ambient temperature | -20 °C...+70 °C |
| Sensor material | Ceramic (AISI203) 99,9 % |
| Other wetted parts | AISI 316L, option Hastelloy C |
| Electronics housing | AISI 304, option AISI 316 |
Applications
Hydrostatic level measurement of liquids where a flush sensor is needed. Application mainly in the food industry, pharmaceutical industry and chemical industry. The transmitter is suitable for cleaning in place, both CIP and SIP.
Accessories
- Welding nipples for several connections
