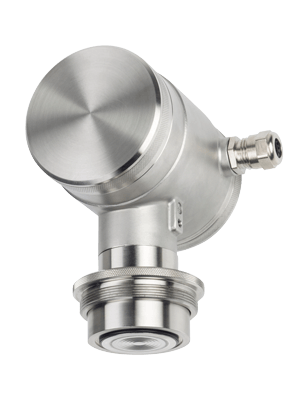

Intelligent Pressure Transmitter 2000-SAN with metallic diaphragm

The all stainless series 2000-SAN pressure transmitter has a flush diaphragm. Various hygienic connections, flanges or threaded connections. Application in the food industry, pharmaceutical industry and chemical industry. This microprocessor based transmitter can easily be programmed using the three push buttons and display.



Features

  • All stainless steel housing
  • Easy adjustable using 3 push buttons, without test pressure
  • Strong flush diaphragm
  • Active temperature compensation
  • Many hygienic process connections, also EHEDG and 3-A certified
  • Option HART protocol



Technical details

 Measuring range min. max.   0,04…100 bar
 Process temperature  -20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C
 Accuracy  0,1 % of adjusted span
 Process connections  Hygienic connections, flanges and threaded connections, all with flush diaphragm
 Turn down  10:1
 Output  4-20 mA 2-wire, option HART protocol
 Adjustment  With 3 push buttons and display, without test pressure or with HART
 Power supply  12 - 36 Vdc (Ex: 12 - 26,5 Vdc)
 Protection  IP66 (option IP68)
 Ambient temperature  -20 °C...+70 °C
 Diaphragm material  AISI 316L, option Hastelloy C, Tantalum or Gold plated
 Wetted parts  AISI 316L
 Electronics housing  AISI 304, option AISI 316
 Certificates/approvals

 Explosion safety : ATEX and IECEx Ex-nA, Ex-ia, Ex-ib and Ex-ec, EAC Ex-ia
 Marine approvals : Lloyd's, DNV, BV, CCS, ABS,
 Functional safety : SIL2

 Sanitary standard: EHEDG, 3-A



Applications

Absolute and relative pressure measurement of liquids, pastes and slurries where a flush diaphragm is needed. Application mainly in the food industry, pharmaceutical industry and chemical industry. The transmitter is suitable for cleaning in place, both CIP and SIP.



Accessories

  • Welding nipples for various connections
